Awning Fabrics

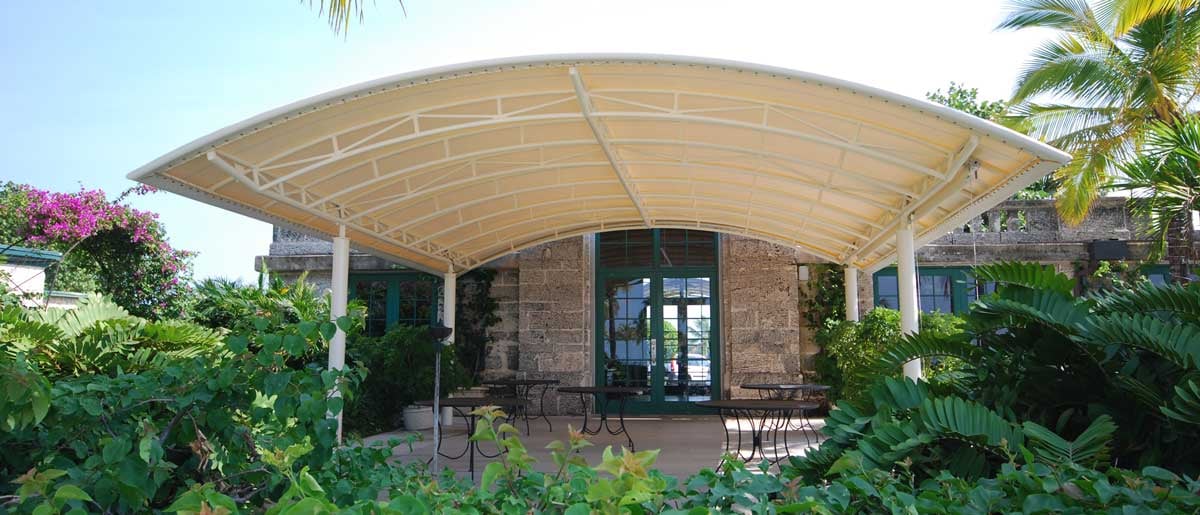

Architectural awnings designed with Herculite's® Awning Fabrics provide extra outdoor living and extended seasonal space, protect interior furnishings from fading and ultra violet damage. The PVC composite textile awning material reduces energy costs, and offers superior sun protection. Vinyl awning fabrics are waterproof, easy to maintain and the fabric stays tight on the frame. All our brands employ superior unique film formulations, adhesive systems and our Core Stabilized Process to insure maximum extended life performance.

Awnings are energy savers with 8-15 degrees cooling capability. They reduce solar heat gain up to 65% on south-facing windows and 77% on west-facing windows. Since awning fabric does not trap heat and moisture, an awning can reduce air conditioning costs by as much as 25%!

Learn More

Benefits of Herculite Awning Fabric Brands

Waterproof awning fabric solution
Excellent UV resistance
Easy to clean and maintain
Maximum mildew resistance
Manufacturers warranty
Flame resistant to commercial standards
Large color selection
Made in the USA

"We all need more partnerships like that one we have with Herculite. We could not be more pleased with where we are today and certainly look forward to how each of our companies continue to grow and prosper together for tomorrow."

Tony L

Custom Engineering Fabric Offering

When a project requires specific features or attributes, our experienced development team will customize an awning fabric product to meet your specification requirements. As you develop these new applications Herculite welcomes the opportunity to improve your bottom line. Please contact Herculite’s Customer Care Department at 1-800-772-0036.

Contact Us Take the Survey

Disclaimer: These fabric qualities are designed to provide appropriate technical information and advice to fabricators and end-users. The information is given in good faith, but because of the many particular factors that are outside our knowledge and control, and affect the use of products, no warranty is expressed or is implied on its accuracy.



Description Vinyl laminated on a weft insertion scrim base of high tenacity filament polyester.
Weight 15 oz. per lineal yard
Width 62 inches / 157.48 centimeters
Surface Top surface treated with Rain Kleen® for color retention and prolonged fabric life.
Transparency Some light color shades offer good illumination.
Abrasion Resistance Excellent
Dimensional Stability Excellent
Flexibility Excellent in both hot and cold environments
Flame Resistance Meets California State Fire Marshall Title 19, NFPA-701 ASTM E84-81A Flame Spread Rating Class A (15)
Mildew Resistance Excellent
Chemical Resistance Excellent
Water Repellency Excellent – Water Proof
Oil Resistance Excellent
Sewability Excellent
Heat Sealability Excellent. Can be sealed by hot air weg welder or radio frequency bar type.

Care and Cleaning

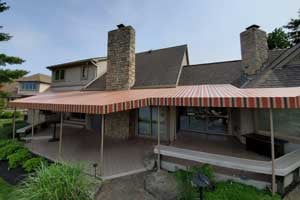

Coastline Plus® Awning Fabric is a polyester reinforced PVC fabric that will provide many years of satisfactory service. It is waterproof, flame, mildew, stain and dirt resistant. Herculite’s Rain Kleen® surface treatments further enhance longevity and ease of maintenance. Coastline Plus® is dimensionally stable. Properly fastened to the frame, it will retain its trim fit as well as its protective function and aesthetic value. Since no material is impervious to all hazards, proper maintenance is important if maximum life of the product is to be realized.

The following maintenance suggestions are offered:

  1. Keep clean. Occasional hosing with clear water will prevent dirt accumulation. Most dirt accumulation
    can be removed by mild soap, water and a soft scrub brush. Rinse thoroughly. In
    extreme cases, most dirt can be removed by applying half strength bleach and brushing softly
    to cover thoroughly the necessary area. Allow solution to remain for two or three minutes, then
    thoroughly rinse with clear water, protecting surrounding materials or plant growth that might
    be damaged by the bleach. Do not use solvent based cleaners.
  2. In areas particularly conductive to mildew, brush away any visible accumulation of dirt on
    underside. Mildew can grow on dirt, but does not grow on or attack the Coastline Plus™ vinyl.
  3. Use care during installation, take down and transporting. Frictional heat, particularly at the
    folds, can damage the surface. Sufficient frictional heat can create holes.
  4. Avoid excessive wind whip or flapping. Normally fastened sections or panels should be rolled
    or restrained when not in use.

Limited Warranty

Coastline Plus® Awning Fabrics are guaranteed for a period of five (5) years from date of original installation against rot or excessive deterioration, mildew stains,excessive loss of strength or color change if they occur in normal use and exposure, including sunlight and normal atmospheric chemicals. (Some color change is unavoidable due to ultraviolet rays and chemicals in the atmosphere.)

In the unlikely event of failure of fabric during the five (5) year period from date of original installation, we will supply you, the original owner or the provider of your protective fabric accessories with replacement fabric at no charge. This warranty protects you against damage to the fabric accessories used under
normal conditions. It does not cover damage to the fabric from acts of God, vandalism, neglect or improper use including the misuse of solvent based cleaners that can damage the top coat.

This warranty is in lieu of all warranties expressed or implied, and, Herculite Products Inc. will not be liable for any consequential or incidental damage. Any implied warranties imposed by law are limited in time to the duration of the expressed warranty.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage, so, the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
